Tank containers are special in that they provide the safe transport of liquid and gaseous cargo by ship, truck or rail.
The actual tanks correspond to those of ISO containers, making both combined transport as well as uncomplicated, common storage with other container types possible.
What Should You Be Careful Of When Using Tank Container For Transport?
Whether food or chemicals, transportation in tank containers is subject to strict legal regulations used to ensure safe transport and to avoid contamination.Items such as juices, dairy products or oils must be transported under perfect hygienic conditions.
If necessary, insulation, as well as additional cooling or heating of the containers can be required.
Temperature sensitive cargo can be maintained by a temperature sensor.
Depending on the nature of the liquid, an agitator that is pre-installed in the tank must be used.
It is important that tank containers for food transport have a clear label. This can eliminate confusion and contamination.
Even when transferring dangerous goods and other chemicals, some safety precautions must be taken. Substances subject to increased safety requirements include fuels such as diesel, anti-corrosive agents and all other toxic, explosive or other hazardous substances.
For example, the tank containers for dangerous goods must not have any inlet or outlet openings below the liquid surface in order to prevent uncontrolled leakage in the event of a problem.
Each tank must be clearly marked in order to indicate possible dangers and to avoid confusion of the goods being transported.
- Wind and waterproof
- Interior panel out of aluminum
- Insulated panel (insulating wool)
- Environmentally safe transport
- Tank protected with general purpose container frame
Areas Of Application
- Ideal for transport of liquid materials
- Container for liquid chemicals or oils
- Suitable for transporting gaseous substances
- Can be equipped with cooling unit
Types And Measurements Of Structure
You can buy or rent in our depot tanks with or without surge walls.
The tank chambers are divided into two or more sections by one or more surge walls. This prevents the load from buckling up during starting up and braking.
If you are using tank containers without a surge wall, you should ensure that they are either empty or at least 80% percent filled. For this reason, the containers with a surge wall offer much greater flexibility in everyday life because they allow variable filling quantities.

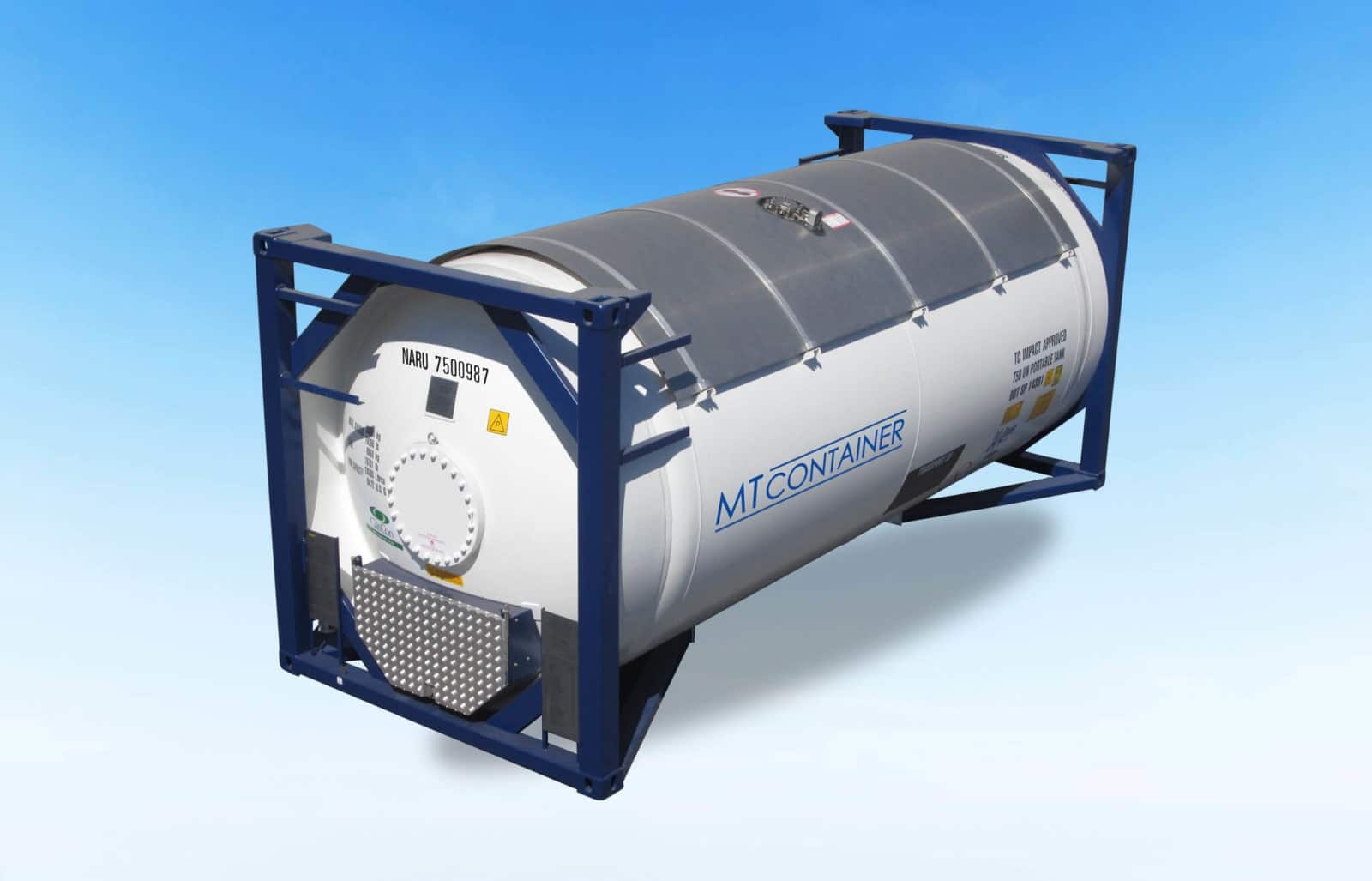

The outer dimensions of the tanks correspond to those of ISO containers. Common dimensions are 20 ft or 40 ft. In addition to ordinary storage tank containers, there are also so-called flexitanks. These tanks made of flexible material are placed in an ISO container or a tank trailer. However, they are only suitable for substances which are not covered by the Dangerous Goods Regulations.
|External Dimensions||Length 6058 mm | Width 2438 mm | Height 2591 mm|
|Volume||20-26 m³ | 20.000 - 26.000 Liter | Druck 0 - 4.2 bar|
|Weight||Tare Weight 3200 kg | Payload 28480 kg | Total Weight 36000 kg|
Our Tank Container Services
In our depot, we can offer you new tank containers or as a general overhaul used container in good condition.
The stainless steel transport containers come from well-known manufacturers such as Rootselaar or Hoyer.
Just like many other types of containers, you can buy the tanks or rent them for a limited period of time, of course with a CSC plaque, meaning worldwide approval if your transport project requires this.
We also offer repairs and maintenance for tank containers or reefers in our depot.
Please do not hesitate to contact us. We will be glad to answer your questions about tank containers or tank container logistics.
By the way, you can also find our tanks, tank trailers and silo containers for sale at Autoscout24.
